BCE / TS - E 72/100 View larger

BCE / TS - E 72/100

New

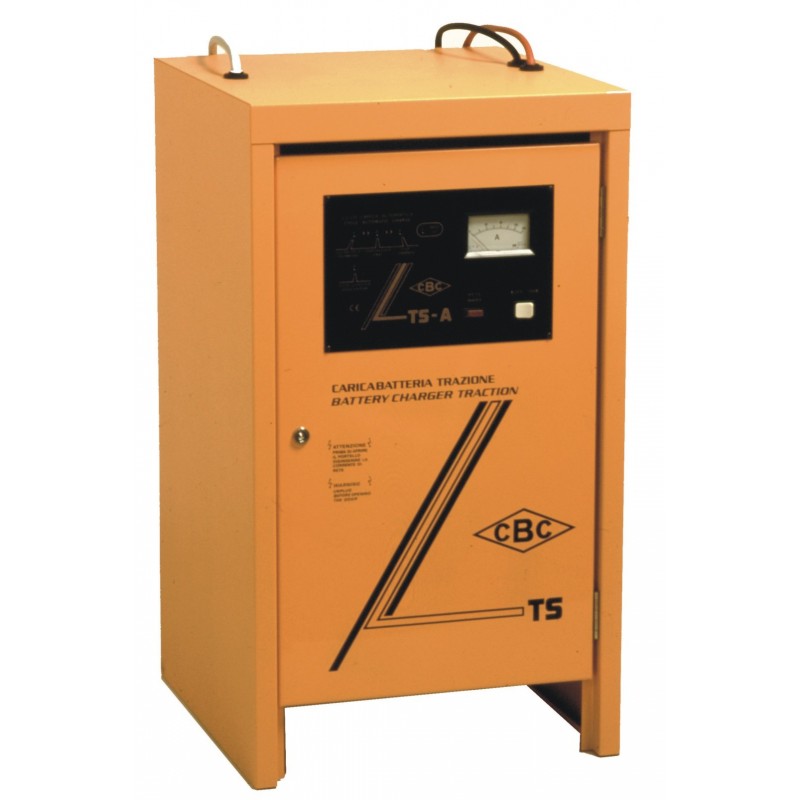

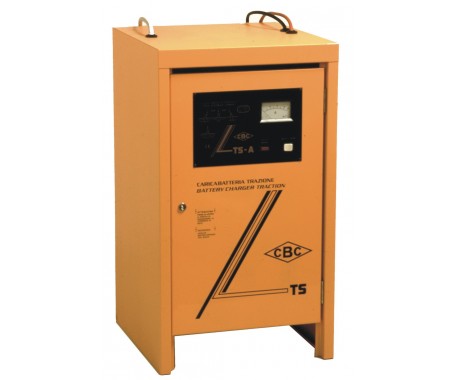

Automatic battery chargers for lead batteries WET (with top-ups).

More details

Automatic battery chargers for lead batteries WET (with top-ups).

  • Structures in painted steel sheet.
  • Transformers with copper winding.
  • Supply protection.
  • Protection of auxiliary circuits.
  • Output protection against reverse polarity, overload and short circuit.
  • Automatic end-charge with power-off.
  • Indication of charge with electromagnetic ammeters.
  • Indication of the automatic charge cycle by LED.
  • Power supply 230V - 400V 50-60Hz 3ph with change voltage and supply adapter.
    Supply 230V-400V 50-60Hz 3ph
    Type of charge Auto-decreasing current
    kW Max 10,4
    Battery voltage 72
    Max charge Acc 100
    Ah rechargeable battery - MIN 500
    Ah rechargeable battery - MAX 620
    Low voltage regulation LVD 2014/35/UE
    Product regulation EN 60335-2-29
    Electromagnetic compatibility EMC 2014/30/UE
    Protection degree IP 21
    Dimensions mm. L 500 x P 540 x H 900
    Weight kg. 91
    Charge voltage (FOR RESEARCH) 72
    Battery Ah (FOR RESEARCH) 500
